Anti-ESD Bag Guide: Types, Standards, and Selection

An anti-ESD bag is packaging selected to control one or more electrostatic risks around electrostatic-discharge-sensitive (ESDS) electronics. Depending on its verified properties, a bag may reduce charge generation, dissipate charge, shield its contents from an external discharge, or combine those functions with moisture protection. These terms are not interchangeable, and bag color or metallic appearance does not prove performance.

What Is an Anti-ESD Bag?

“Anti-ESD bag” is a broad buyer term rather than one precise material class. In professional ESD programs, packaging is selected by required properties and verified test results. ANSI/ESD S541-2026 defines packaging properties used to protect ESDS items through production, transport, and storage and supports ESD control programs based on ANSI/ESD S20.20. IEC 61340-5-3 covers corresponding packaging-property requirements internationally.

The first question is not “What color bag do I need?” It is “What electrostatic hazards will the item encounter, and where?” A package used only inside a controlled EPA may have different requirements from a package shipped through uncontrolled warehouses, vehicles, and customer receiving areas.

Four ESD Packaging Properties to Understand

Low charging

Low-charging packaging is designed to reduce triboelectric charge generation when the item and packaging contact and separate. “Antistatic” is commonly used for this behavior. Low charging is important, but it does not by itself demonstrate that a bag shields a device from an external electrostatic discharge.

Charge dissipation

A dissipative material allows charge to move in a controlled manner rather than remain highly localized. Electrical resistance measurements help classify material behavior, but low-charging behavior is not always predictable from resistance alone. Use the standard and test method named in the specification.

Conductive behavior

Conductive packaging moves charge more readily than dissipative packaging. It can be useful in defined material-handling systems, but exposed conductive material can create other electrical or shorting risks. The protected device, contact layer, grounding path, and work procedure must be considered together.

Discharge shielding

Discharge-shielding packaging limits the energy that reaches the item during a discharge to the outside of the closed package. ANSI/ESD STM11.31 and technically equivalent IEC 61340-4-8 provide test methods for evaluating shielding bags. A metallic-looking layer, “Faraday cage” description, or surface-resistance value alone is not a substitute for bag-level shielding test data.

Anti-ESD Bag Types Compared

Phone users can swipe horizontally to view the full table.

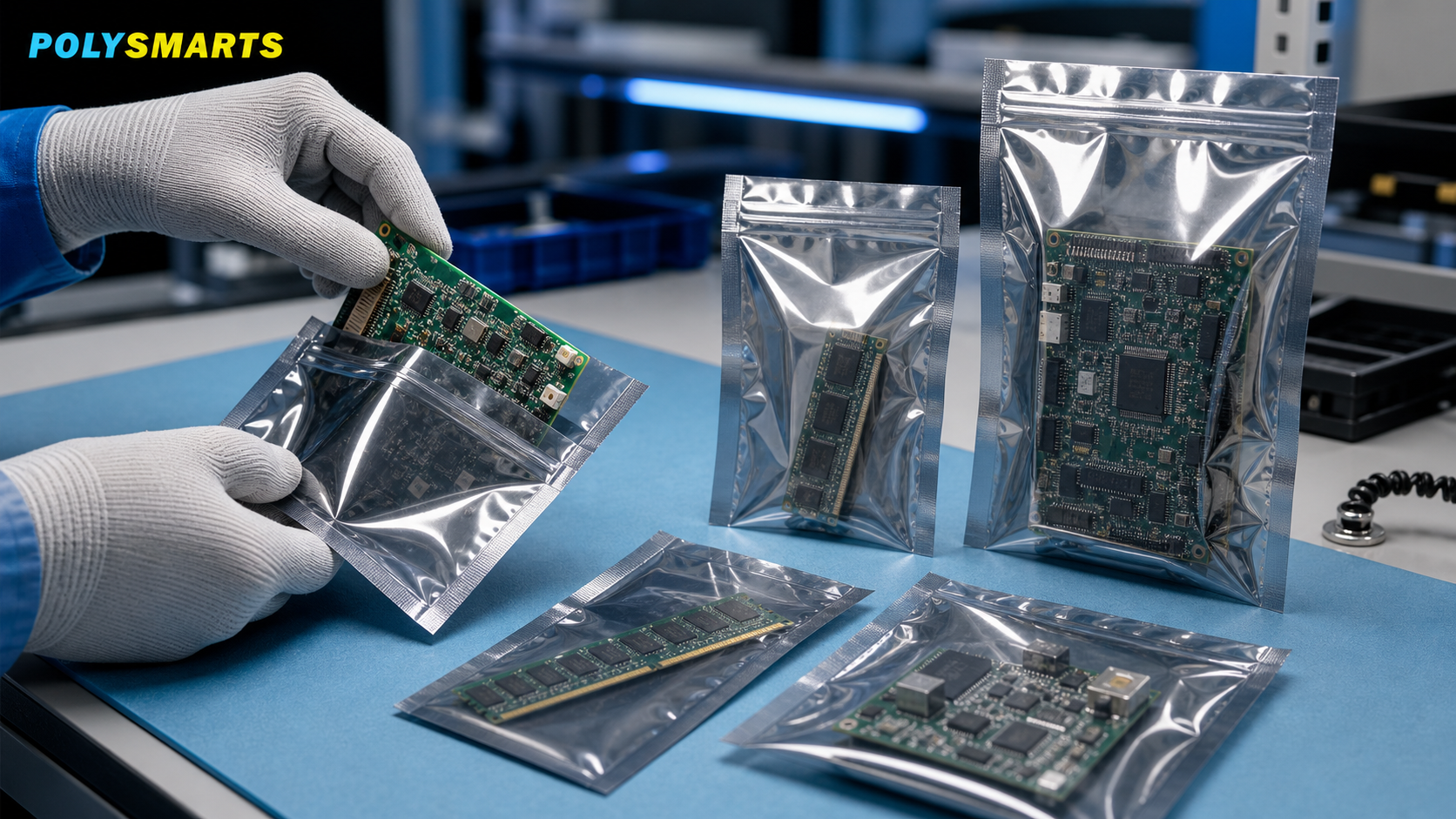

How a Static-Shielding Bag Protects Electronics

A common transparent shielding bag uses a low-charging inner layer, a thin conductive metal layer, and a mechanically protective outer layer. During a discharge to the outside of a properly closed, intact bag, the conductive layer routes charge around the enclosed space and limits energy reaching the device. The contact layer helps reduce charge generation when the device enters or leaves the bag.

This mechanism has boundaries. An open bag is not equivalent to a closed shielding enclosure. A puncture, torn seam, damaged closure, folded-back metal-out surface, or exposed component lead can alter performance. Shielding bags also do not automatically provide electromagnetic-interference (EMI), electromagnetic-pulse (EMP), corrosion, or moisture protection; IEC 61340-5-3 explicitly excludes EMI and EMP protection from its scope.

For a deeper explanation, read what anti-static shielding bags are and how they protect electronics. Verify any construction or performance statement on that page against current test documentation before using it in a purchase specification.

When Do You Need an Anti-ESD Bag?

Potential applications include integrated circuits, printed circuit board assemblies, memory modules, sensors, LEDs, displays, connectors with active electronics, telecom modules, drives, medical electronics, test instruments, and aerospace or industrial-control assemblies.

Need is determined by the item’s ESD sensitivity and exposure—not its price or size. Obtain the component’s sensitivity classification, customer packaging specification, or engineering risk assessment. A robust finished consumer device may need ordinary physical packaging, while an exposed assembly with sensitive inputs may require shielding, shorting, cushioning, and environmental controls.

Inside vs. Outside an ESD Protected Area

Inside an EPA, personnel, worksurfaces, tools, equipment, and materials are controlled under an ESD program. Packaging generally needs appropriate low-charging and resistance properties for the operation. Once an ESDS item leaves the EPA, uncontrolled people and objects can create direct discharge hazards, so discharge shielding becomes a key package property under ANSI/ESD S541 guidance.

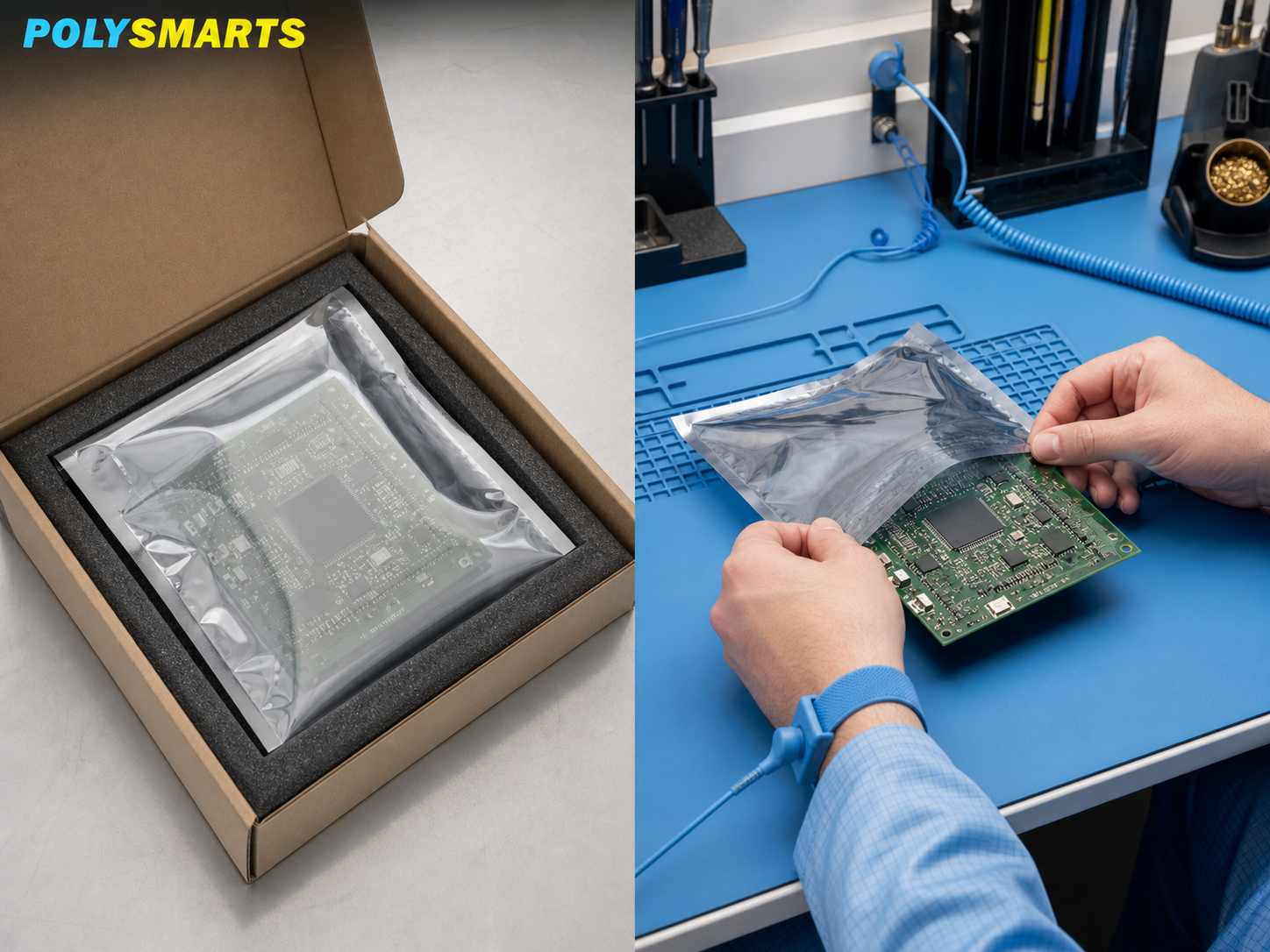

Correct Handling Procedure

1. Prepare the EPA. Verify the workstation, personnel grounding, tools, and required environmental controls according to the site’s ESD plan.
2. Inspect the bag. Reject or investigate tears, punctures, split seams, delamination, heavy creases, contamination, or damaged closures.
3. Remove ordinary charge-generating materials. Keep standard plastic, foam, tape, paperwork, and clothing outside the defined handling area unless the ESD plan permits them.
4. Handle the device by safe areas. Avoid touching pins, contacts, conductors, and circuitry. Use component-specific shorting or lead protection where required.
5. Open only in the EPA. Do not remove an ESDS item from shielding packaging at an uncontrolled desk, shipping counter, or field location.
6. Choose the right closure. A zipper may support controlled access, but a qualified heat seal may be needed for shipping, moisture barrier, tamper evidence, or customer requirements.
7. Add mechanical protection. Prevent movement and protect sharp leads so they cannot puncture the bag. Use ESD-compatible cushioning and cartons.
8. Mark and trace. Apply the correct ESD awareness/protective symbol, part identification, quantity, lot, date, and handling instructions specified by the customer and ANSI/ESD S8.1.

How to Select an Anti-ESD Bag

1. Identify the item and sensitivity. Record device type, exposed leads, dimensions, mass, value, ESD sensitivity, moisture-sensitivity level if applicable, and customer requirements.
2. Map the handling route. Separate operations inside the EPA from storage, shipping, receiving, field service, and other uncontrolled stages.
3. Assign required properties. Define low charging, dissipative or conductive resistance, discharge shielding, moisture barrier, corrosion control, light barrier, cleanliness, and physical protection independently.
4. Select the construction. Choose contact layer, shielding layer, outer layer, bag format, thickness, size, cushioning, and closure based on the risk assessment.
5. Specify test methods and limits. Reference the applicable edition of ANSI/ESD S541 or IEC 61340-5-3 and named test methods rather than relying on trade names.
6. Control sharp features. Add caps, trays, foam, or board holders when pins, corners, solder joints, or hardware could puncture or abrade the bag.
7. Validate the full pack. Test the converted bag, closures, labels, cushioning, carton, and actual or representative product after conditioning and distribution simulation.
8. Establish incoming and reuse rules. Define lot documentation, inspection, sampling, shelf life where relevant, and objective criteria for discarding reused bags.

What Test Data Should a Buyer Request?

• the exact bag construction, layer order, thickness, and metal-in or metal-out design;
• low-charging evidence when required by the packaging plan;
• surface or volume resistance results using the named standard method and conditioning;
• bag-level discharge-shielding results using ANSI/ESD STM11.31 or IEC 61340-4-8 when required;
• seal strength, seam integrity, puncture, tear, abrasion, and drop/distribution results appropriate to the application;
• water-vapor transmission data and dry-pack validation when moisture protection is claimed;
• cleanliness, ionic contamination, corrosion, or outgassing data for sensitive applications;
• lot traceability, certificate of conformance, test frequency, and change-notification controls;
• the applicable standard edition, specimen conditioning, sample size, laboratory, date, and acceptance criteria.

A generic material datasheet does not necessarily represent the finished bag. Seams, zippers, printing, pinholes, folds, contamination, aging, and conversion can affect performance.

Common Anti-ESD Packaging Mistakes

• buying by pink, black, or silver color instead of verified properties;
• using a low-charging poly bag as shipping protection for an exposed ESDS device without verified discharge shielding;
• leaving the bag open or folding the device partly outside it;
• placing a circuit board on top of the bag as though it were a grounded worksurface;
• allowing leads, corners, or loose hardware to puncture the bag;
• adding ordinary bubble wrap, tape, foam, or paperwork inside the ESD package without evaluating charge generation;
• assuming a zipper is equivalent to a qualified heat seal for moisture-barrier or shipping requirements;
• reusing bags based only on appearance without a defined inspection and performance policy;
• claiming EMI, moisture, corrosion, or oxidation protection from ESD data alone.

What to Provide for an Electronic Components Bag Quote

• part name, drawing, dimensions, weight, exposed leads, sharp areas, and quantity per bag;
• ESD sensitivity and required packaging standard/edition;
• use inside the EPA, outside the EPA, shipping, storage, field service, or multiple stages;
• required low-charging, resistance, and discharge-shielding properties with named test methods;
• moisture-sensitivity level, storage duration, climate, dry-pack, desiccant, and humidity-indicator requirements;
• bag dimensions, thickness, metal-in/metal-out preference, zipper, open-top, heat-seal, gusset, or hang-hole needs;
• cushioning, puncture, abrasion, transparency, cleanliness, and corrosion requirements;
• printing, ESD symbols, warnings, part/lot codes, barcodes, and artwork;
• order quantity, annual forecast, destination, traceability, certificate, sampling, and change-control requirements.

Explore Polysmarts’ electronic components bag options, including the ESD bag listing currently shown in the category. Before ordering, require the actual construction and current test reports for the properties your ESD packaging plan specifies.

Frequently Asked Questions

What does an anti-ESD bag do?

It controls one or more electrostatic risks around sensitive electronics. Depending on verified properties, it may reduce charge generation, dissipate charge, or shield the enclosed item from an external discharge. The exact function must be specified and tested.

Is an antistatic bag the same as a static-shielding bag?

No. “Antistatic” usually refers to low-charging behavior. A static-shielding bag must also limit energy transferred to its interior during an external discharge. A bag can have both properties, but one does not prove the other.

What is the difference between pink and silver ESD bags?

Pink bags are commonly low-charging polyethylene intended for controlled uses. Translucent silver bags commonly contain a conductive metallized layer for discharge shielding. Color and appearance are not specifications; verify the finished bag’s test data.

Can I use an anti-ESD bag outside an EPA?

For an exposed ESDS item outside an EPA, use packaging with the discharge-shielding property required by the applicable packaging plan. A simple low-charging bag may be insufficient.

Does the bag need to be sealed?

The package should be fully closed for its shielding enclosure to perform as intended. The required closure may be a zipper, fold, tape, or heat seal depending on the validated design, shipping, tamper, and moisture requirements.

Can I open a shielding bag at a normal desk?

Not when the item requires ESD controls. Move the closed bag into a verified EPA, ground personnel and the workstation according to procedure, then open it and handle the item by safe areas.

Are ESD bags moisture-barrier bags?

Not necessarily. A shielding bag may have limited moisture resistance without meeting a dry-pack WVTR requirement. Moisture-barrier performance requires separate construction, data, sealing, and process controls.

Can ESD bags be reused?

Only under a documented policy that considers the bag type, manufacturer guidance, contamination, creases, abrasion, punctures, seam and closure damage, age, and required performance. Visual inspection alone cannot confirm electrical properties.

Do shielding bags block EMI?

ESD discharge shielding and electromagnetic-interference shielding are different functions and test regimes. IEC 61340-5-3 does not address EMI or EMP protection. Specify and test EMI separately if required.

Which standard covers ESD protective packaging?

ANSI/ESD S541-2026 defines ESD protective packaging properties in support of ANSI/ESD S20.20 programs. IEC 61340-5-3 provides the corresponding international packaging requirements. Use the edition required by your customer or quality system.

Conclusion

The right anti-ESD bag is selected by hazard, handling location, device sensitivity, and verified package properties—not color or marketing terminology. Define low charging, charge dissipation, conductivity, discharge shielding, moisture barrier, and mechanical protection separately. Then validate the converted, closed package and open it only under the controls required for the ESDS item.

For custom sourcing, review Polysmarts’ electronic component packaging collection and submit the technical requirements from the quotation checklist above.

Authoritative References

• EOS/ESD Association: ANSI/ESD S541-2026 Packaging Materials
• EOS/ESD Association: Basic ESD Control Procedures and Materials
• EOS/ESD Association: Packaging Test Methods Including ANSI/ESD STM11.31
• IEC 61340-5-3: ESD Protective Packaging Properties and Requirements
• NASA Workmanship Manual Overview: Electrostatic Discharge Control
